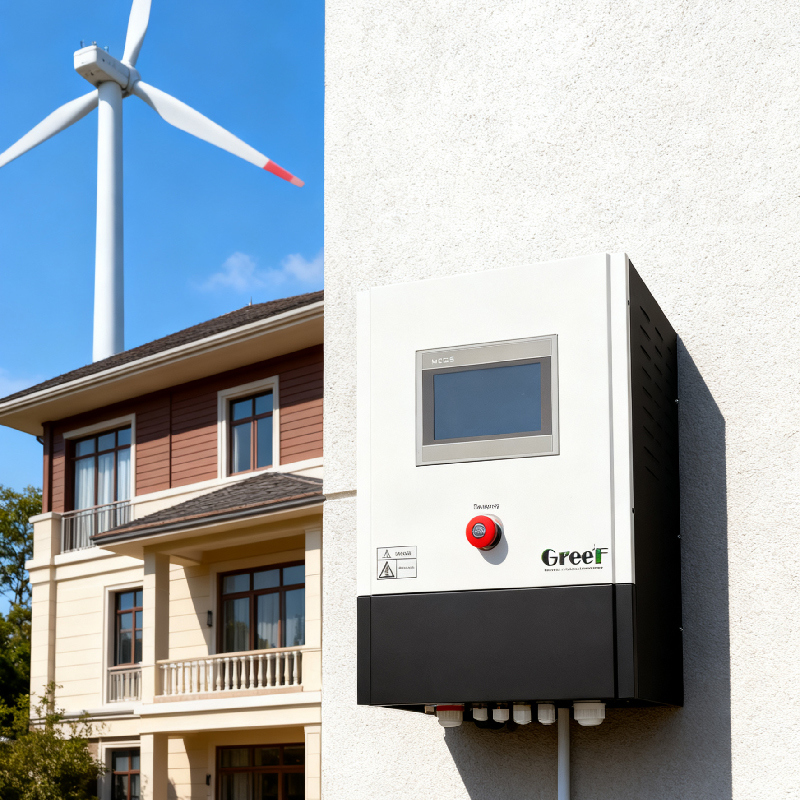

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

Rectifier Function On Grid Controller

Control Function Grid-Tied Controller

DC Output Function Wind Generator Controller

Nombre de la marca:

Greef

Certificación:

CE

Model Number:

GT-PCTC Series Controller

Contacta con nosotros
Solicitar una cita
On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
Detalles del producto
Tipo de producto:
Protección contra sobre tensión, Protección contra cortes de red, salida de alimentación regulada, a
supervisión de la rejilla:
Sí
Método de enfriamiento:
Convección natural
Función:
Rectificador, control, salida de CC
Grado de protección:
IP20 (en interiores) IP65 (en exteriores)
Válvula constante PWM:
≥ 400dc, ≥ 700dc
Eficiencia MPPT:
99.9%
Frecuencia de salida:
50Hz/60Hz
Condiciones de pago y envío
Minimum Order Quantity
1Set
Precio
negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Condiciones de pago
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
PRODUCTOS RELACIONADOS
Un buen precio. Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage en línea el video

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

Obtenga el mejor precio
Un buen precio. Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems en línea el video

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

Obtenga el mejor precio
Un buen precio. Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling en línea el video

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

Obtenga el mejor precio
Un buen precio. On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems en línea el video

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

Obtenga el mejor precio
Contacta con nosotros
Contacta ahora
Descripción del producto
Wind Turbine Grid-Tied Controller AC220V-600V with Manual Function and Emergency Switch
Product Overview
The Grid-Tied Controller is a critical component for wind generator systems connected to the power grid. This advanced controller converts three-phase AC current from wind turbines into DC current for grid-tie inverters, featuring dual safety systems (PWM constant voltage and three-phase dump load brake) for optimal performance and reliability.
Key Features
  • Compatible with leading solar inverters (Growatt, Deye, Solis, lvet)
  • Double safety control systems for enhanced protection
  • LCD touch screen display with comprehensive monitoring
  • Manual brake, reset, and emergency switch functions
  • Multiple protection features including over voltage and grid cut-off
  • Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)
Technical Specifications
Type GT-PCTC-1.5KW GT-PCTC-2KW GT-PCTC-3KW GT-PCTC-5KW
Wind turbine rated power 1.5KW 2KW 3KW 5KW
Wind turbine rated voltage AC220V-240V AC220V-240V AC220V-380V AC380-450V
PWM constant voltage ≥400dc ≥700dc ≥700dc ≥700dc
Type GT-PCTC-10KW GT-PCTC-20KW GT-PCTC-30KW GT-ACDC-50KW GT-ACDC-100KW
Wind turbine rated power 10KW 20KW 30KW 50KW 100KW
Wind turbine rated voltage AC380-520V
General Specifications
  • Environment temperature: -30-60°C
  • Relative humidity: ＜90% (No condensation)
  • Noise (1m): ＜40dB
  • Degree of protection: IP20 (Indoor) / IP65 (Outdoors)
  • Cooling method: Forced air cooling
On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 0 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 1 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 2 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 3 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 4 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 5 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 6 On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems 7
Greef has a professional team to create tailor-made systems for customers. The images shown are examples - contact us for custom requirements.
Applications
Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.
Customization Options
  • Brand Name: Greef
  • Model Number: GT-PCTC Series Controller
  • Certification: CE
  • Minimum Order Quantity: 1 Set
  • PWM Constant Voltage: ≥400dc, ≥700dc
  • MPPT Efficiency: 99.9%
Packaging & Shipping
  • Package Includes: Controller unit, user manual, mounting hardware
  • Packaging: Foam + plywood case
  • Delivery Time: 25 working days
  • Payment Terms: T/T, Western Union, MoneyGram, L/C
