Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac

Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac

Controlador off grid 5KW MPPT

Controlador off grid 30KW 380Vac

Controlador MPPT off grid 48Vac

Nombre de la marca:

Greef

Certificación:

CE

Model Number:

AHCC

Contacta con nosotros
Solicitar una cita
Detalles del producto
Voltaje nominal:
48VAC-380VAC
Voltaje de sistema nominal:
42-240VDC/200-1000VDC (parámetros ajustables según el tipo de almacenamiento de energía)
Energía eólica nominal:
5kW/10kW/20kW/30kW
Protección de entrada:
Fusibles; circuitos de protección de rayos
Rango de voltaje MPPT:
90 ~ 520V personalizado/220 ~ 530Vac
Altura sobre el nivel del mar:
Salida de carga completa de 3000m
Tipo de batería:
Batinas de ácido de plomo, baterías de litio, barras de autobuses DC, etc.
El máximo soporta voltaje:
290VAC-530VAC/600VAC durante 5 segundos
Resaltar:

Controlador off grid 5KW MPPT

,

Controlador off grid 30KW 380Vac

,

Controlador MPPT off grid 48Vac

Condiciones de pago y envío
Minimum Order Quantity
1Set
Precio
Negociable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Condiciones de pago
T/T, Western Union, Moneygram, L/C
Supply Ability
Supply Ability
Descripción del producto
Controlador Greef Off-Grid para Sistemas de Energía Eólica
Voltaje máximo soportado: 290Vac-530Vac/600Vac durante 5 segundos | Voltaje nominal: 48Vac-380Vac
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 0
Descripción del Producto
El Controlador Off-grid es el componente más crucial en los sistemas de generadores eólicos, responsable de convertir la corriente alterna trifásica de la turbina eólica en corriente continua para cargar bancos de baterías.
El controlador off-grid eólico GREEF mejora la producción de electricidad a través de la tecnología MPPT dedicada, con:
  • Diseño modular avanzado para una configuración flexible
  • Aislamiento eléctrico para mayor seguridad
  • Capacidad de descarga PWM
  • Integración de control por computadora host
  • Interfaz de pantalla táctil grande
  • Funcionalidad IoT para monitoreo remoto
Aplicaciones
El Controlador Off-Grid AHCC está diseñado para varios sistemas de energía renovable:
  • Sistemas de generación de energía eólica
  • Sistemas de generación de energía hidroeléctrica
  • Sistemas de generación de energía solar
Optimiza el rendimiento y la eficiencia al proporcionar capacidades de control y monitoreo confiables adaptadas a cada fuente de energía renovable.
Especificaciones Técnicas
Modelo AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
Potencia nominal 5KW 10KW 20KW 30KW
Tipo de producto MPPT, convertidor de energía nueva aislado de alta frecuencia
Lado de salida CC
Tipo de almacenamiento de energía Baterías de plomo-ácido, baterías de litio, barras colectoras de CC, etc.
Corriente de salida nominal 100A 200A 80A 150A
Rango de voltaje de salida 42-240Vdc (ajustable) 200-1000Vdc (ajustable)
Precisión de estabilización de voltaje ≤±0.5%
Precisión de estabilización ≤±1%
Lado de entrada de la turbina eólica
Voltaje nominal 48Vac-380Vac 380Vac
Voltaje máximo soportado 290Vac-530Vac durante 5 segundos 600Vac durante 5 segundos
Rango de voltaje MPPT 90~520V personalizado 220~530Vac
Potencia máxima 10kW 20kW 40kW 60KW
Corriente de entrada nominal 40Aac 80Aac 40Aac 80Aac
Protección de entrada Fusibles; circuitos de protección contra rayos
Lado de descarga
Método de descarga PWM
Corriente de descarga nominal 40Adc 100Adc 50Adc 100Adc
Corriente máxima soportada 60A 200A 200A 400A
Condiciones ambientales de trabajo
Temperatura ambiente -25℃~50℃
Temperatura de almacenamiento -40℃~75℃
Humedad relativa 0 a 95%
Altitud sobre el nivel del mar Salida a plena carga de 3000m
Interfaz de comunicación Estándar: RS485/TCP
Tamaño del controlador (mm) 485×267×450mm 343×605×970mm
Peso del controlador 29.5kg 38.5kg 61.5Kg 71.5Kg
Tamaño de la carga de descarga (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900 x 700 x 1270mm
Peso de la carga de descarga 18kg 40kg 80kg 120Kg
Imágenes del producto

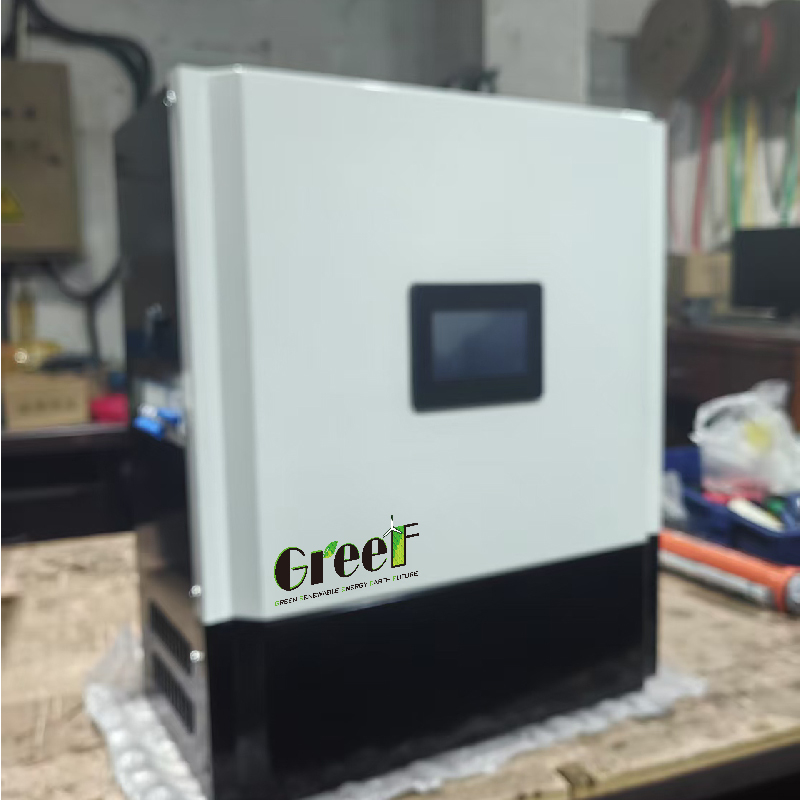

Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 1
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 2
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 3
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 4
Solución del sistema
Podemos adaptar un sistema a sus necesidades específicas.Por favor contáctenos para obtener más información sobre nuestros productos.
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 5
Embalaje del producto
Controlador Greef Off Grid 5KW-30KW MPPT 48Vac-380Vac 6
